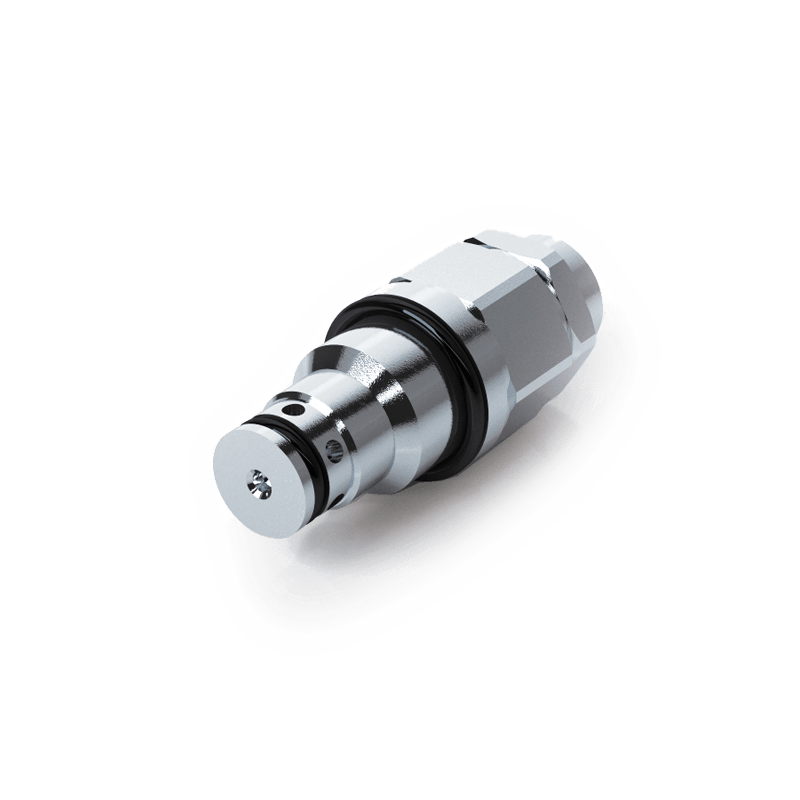

VMPC 20

20 L/MIN CARTRIDGE RELIEF VALVE

Download

VMPC 20 PDF

The relief valve limits the maximum pressure in a circuit to the valve’s setting.
When the circuit pressure reaches the setting, the valve opens and stops the circuit pressure going any higher.

Hydraulic scheme

Assembly

Fit the valve in the appropriate cavity.

On request

Materials and characteristics

Body: zinc-plated steel
Internal parts : hardened and ground steel.
Seals : BUNA N standard.
Leakage: Guided poppet – negligible leakage
