VBPDE CYL

CYLINDRIC DOUBLE PILOT OPERATED CHECK VALVE

Download

VBPDE CYL PDF

Pilot check valves are used to block the cylinder in bothdirections. Flow is free in one direction and blocked in thereverse direction until pilot pressure is applied. Cylindrical typeinstead of the standard one (parallelepiped).

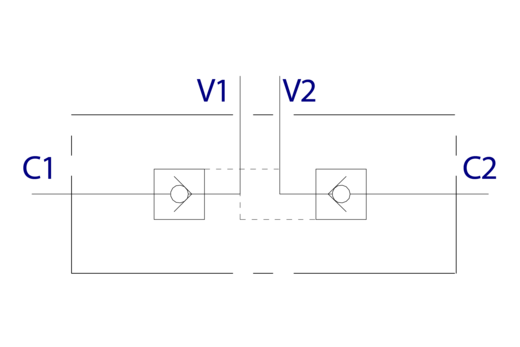

Hydraulic scheme

Assembly

Connect V1 and V2 to the pressure flowand C1 and C2 to the actuator.

On request

Materials and characteristics

Body: zinc-plated steel
Internal parts : hardened and ground steel.
Seals : BUNA N standard.
Leakage: superior valves seating by means of a machined cone, any leakage
