VBPDE 2 CEXC

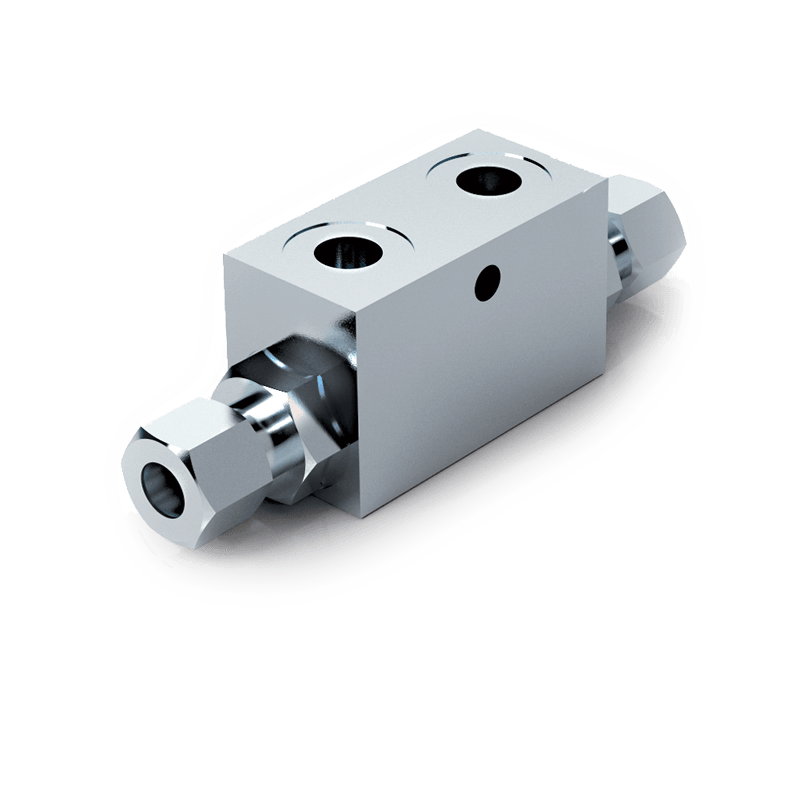

DOUBLE PILOT OPERATED CHECK VALVES FOR 12 MM PIPE MOUNTING (DIN 2353)
Download
Pilot check valves are used to block the actuator in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied. They are easily assembled on a cylinder.
We supply on request fitting kits for mounting on cylinders with a specific centre distance.
Hydraulic scheme
Assembly
Connect V1 and V2 to the supply and C1 and C2 to the actuator with the pipe.
On request
• without seal on pilot piston , • 1 Bar spring , • 8 Bar spring ,
Materials and characteristics
Body: zinc-plated steel
Internal parts : hardened and ground steel.
Seals : BUNA N standard.
Leakage: Guided poppet – negligible leakage
